Molding technical parameters |
|
Structure name |
Dongfeng brand |
External model |
DFV1163GP6DJ |
|
Number of axes |
2 |
Number of tires |
6 |
|
Wheelbase (mm) |
3800, 3950, 4200, 4500, 4700 |
tire |
9.00R20 steel radial tire |
|
Exemption/Environmental Protection Announcement |
have |
Fuel types |
nickel |
|
Emission standards |
National VI |
engine |
Cummins 170 horsepower |
|
Recent Configuration |
|
Exterior configuration: |

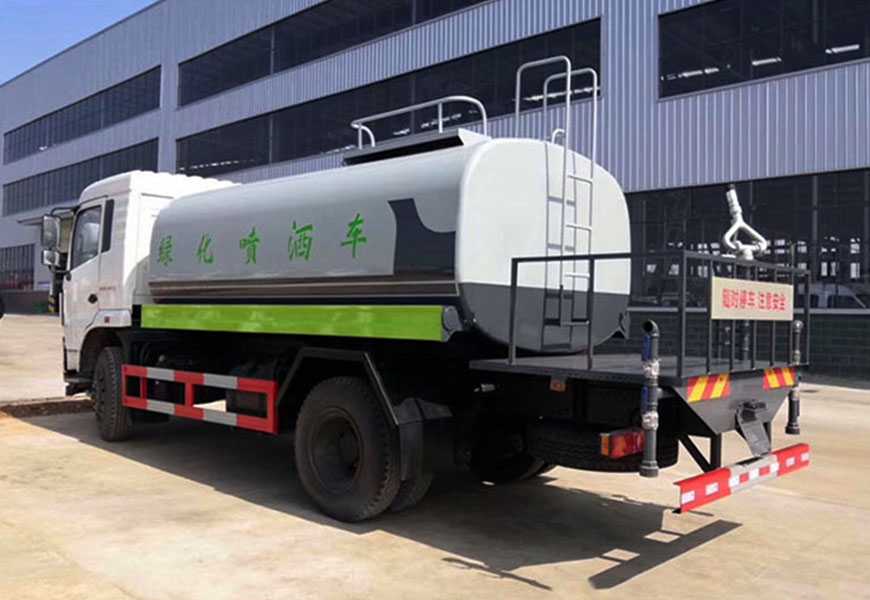

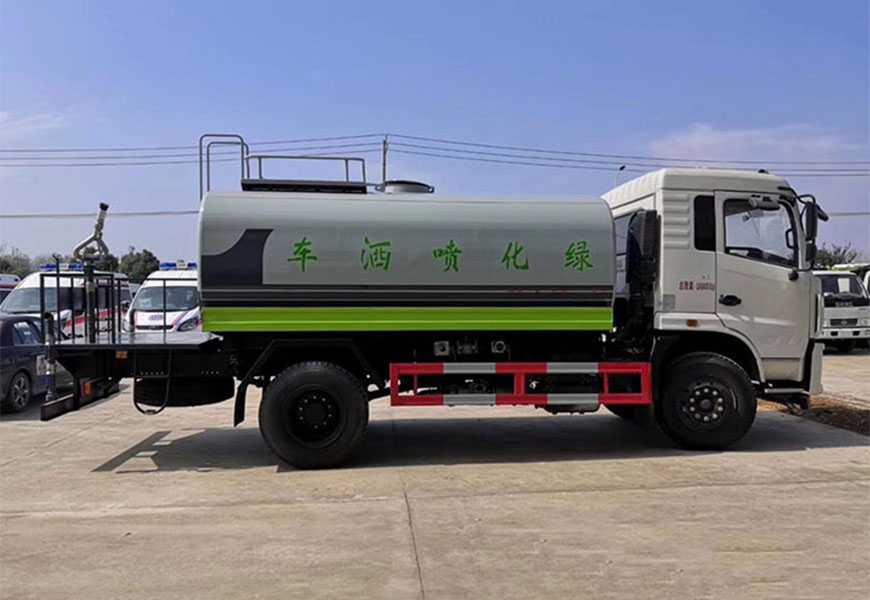

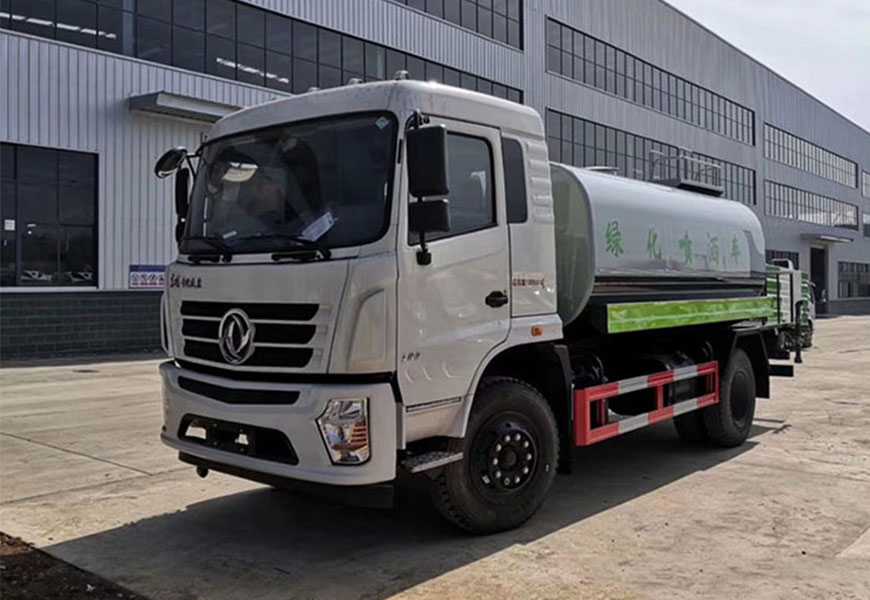

The Dongfeng 12-cubic-meter water sprinkler truck with National VI emission standard adopts the original Dongfeng design, equipped with a six-cylinder Cummins 170 horsepower engine, six-speed heavy-duty transmission, air brake, original ABS, and 9.00R20 all-steel tires.
|
|
Upper body configuration: |
The tank body is composed of 4mm thick special parts for water spray trucks, water pump, power take-off, drive shaft, ball valve, spraying device, and other components. The tank body is made of 4mm thick Wuhan Iron and Steel (WISCO) plate, with an actual volume of 12 cubic meters. Advanced butt welding technology is used inside the tank, which is equipped with anti-surge baffles and has through holes at the bottom. After forming, the tank undergoes high-pressure gas leak testing, giving it high strength, a stable center of gravity, and ensuring safe and stable vehicle transport. |
|
Special functions: |
Standard configuration includes front and rear sprayers with a spray width of ≥18 meters, side sprayers, a work platform at the rear of the tank, and a greening water cannon mounted on the platform. The water cannon is rotatable with a range of ≥28 meters and can be continuously adjusted to a straight jet, heavy rain, light rain, or drizzle. It features safety railings, a dedicated water pump that is self-priming and self-draining, a filter screen, a fire hydrant interface for water intake, a self-flow valve, and a vertical suction height of ≥7 meters. |
