Exterior configuration: |
Adopting the original National VI structure of the Dongfeng Captain K7, it features a single-row, forward-tilting luxury cab, a National VI compliant engine (Chaichai 170 hp), and propulsion prevention (without). The wheelbase is 3800mm, equipped with a Wanliyang 6-speed transmission, original air conditioning, electric windows, remote door locks, power steering, air brakes, air-operated handbrake, ABS, and 245 tubeless tires. It also includes an automatic brake adjustment arm, splash guards, headlight adjustment, warning triangles, reflectors, seatbelt reminders, and a warning triangle.
|
|
Upper body configuration: |

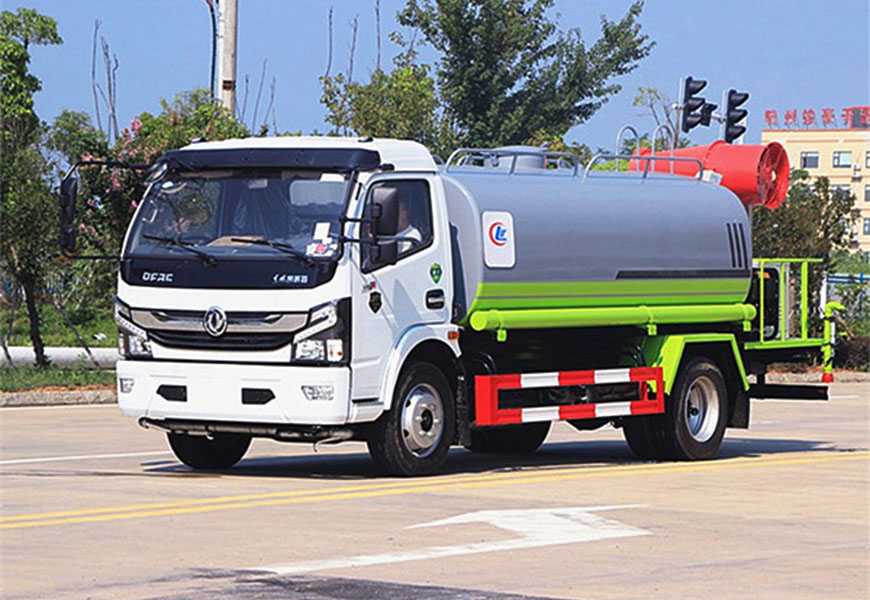

The tank body is made of national standard Q235 carbon steel plate, and can be equipped with 30-meter or 40-meter medium-sized mist cannons. The body uses machine-pressed transverse forming technology, and advanced tank-wrapping machine technology ensures the precision and aesthetics of the tank manufacturing. The tank body is 4mm thick, with a 5mm thickened reverse end cap. The tank body achieves a capacity of 7-10 cubic meters (7-10 tons), emphasizing a baking paint process with multiple layers of primer, anti-corrosion and rust removal, and spray paint. It is fully functional, equipped with front spray, rear spray, side spray, and greening water cannons. It uses a high-quality water pump, a rationally designed water pipeline, and a pneumatic power take-off, resulting in strong operational capabilities. It uses a high-powered diesel generator mist cannon with a spray distance of 30-40 meters, making it widely applicable. |
