| Main vehicle configuration | |||
|---|---|---|---|
| Product Name: |

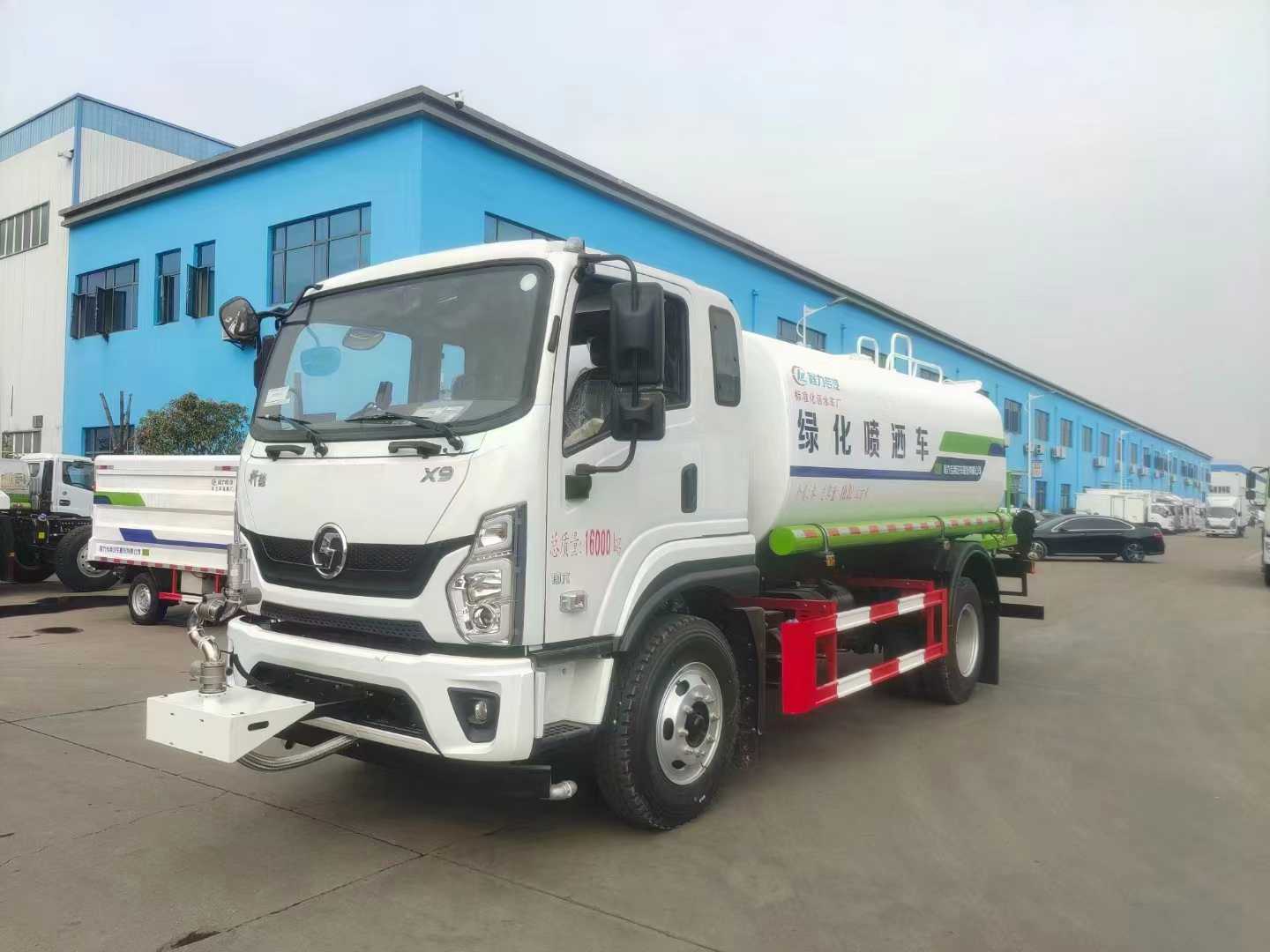

Chengliwei brand CLW5160GSSDP sprinkler |
External dimensions: |
7700, 7550×2480×3200 (mm) |
| Emission levels: | National VI | Cargo box dimensions: | × (millimeters) |
| Total mass: | 16,000 (kg) | Approach/Retreat Angle: | 18/12(°) |
| Rated weight: | 9525,9590 (kg) | Front overhang and rear overhang: | 1300/2300 (mm) |
| Curb weight: | 6280 (kg) | Maximum speed: | 89 (km/h) |
| Molding technical parameters | |||
|---|---|---|---|
| Consumption type: | nickel | External model: | SX1160GP6411 |
| Number of axes: | 2 | Front track: |
1770, 1937, 1810, 1650 1700, 1790, 1830 (mm) |
| Wheelbase: | 4100, 4500, 3950 (mm) | Rear track: |
1700, 1818, 1725, 1595 1650, 1750, 1810 (mm) |
| Number of passengers in the driver's cab: | (people) | Number of leaf springs: |
9/11+5, 9/11+8 8/10+8, 8/10+6 9/10+6, 3/4+3, 10/10+8, 10/11+8 |
| Tire number: | 6 (items) | Axle load: | 5600/10400 |
| Tire specifications: | 9.00R20, 9.00R20 16PR | ||
| Main vehicle configuration | |||
|---|---|---|---|
| Exterior Configuration | Model SX1160GP6411, wheelbase: 3950mm, engine: Yuchai 170 hp, optional Yunnei 177 hp, other features: Fast 8-speed (with PTO), tires: 9.00R20/16PR steel radial tires, X9 extended cab/2120 cab other configurations: power windows, central locking; air conditioning, clutch assist; 100Ah dual battery replacement; frame maintenance 861x232/6+4 double layer, 145/3.2T front axle, 145/8T rear axle. | ||
| Upper body configuration | The upper body is constructed from high-quality carbon steel plates from Wuhan Iron and Steel Group, with a 12 cubic meter structure, 4mm thickness, and 5mm end caps. The transverse end caps are automatically welded by a robot. It features internal baffles, a level gauge, and a high-power original Chengli water pump. It includes an electric control system in the driver's cab, four new stainless steel shut-off valves for front and rear spraying, side spraying, and a rear high-pressure water cannon (adjustable for columnar, rain, and mist sprays), a new punching platform, thickened main pipelines, and all secondary pipelines using high-quality materials. It includes self-priming and self-draining systems, a self-flow valve, fire extinguisher connections, a filter, and electrically powered side lights. Other standard features include… | ||
