| Vehicle technical parameters |
| Product Name | Kaima water truck | Vehicle Model | CLW5030GPSK6 |
| Tank volume | 3 cubic meters | Sprinkler width | 20 meters |
| Water cannon lift | 35 meters | Vertical suction range | 8 meters |
| Total mass (kg) | 3495 | Rated load capacity (Kg) | 1080 |
| Curb weight (kg) | 2285 | External dimensions (mm) | 5350×1800×2100,2650 |
| Molding technical parameters | |||
| Structure name | Kema | External model | KMC1036Q280DP6 |
| Passenger capacity (persons) | 2 people | Number of tires | 6 |
| Wheelbase (mm) | 2600, 2800 | Tire specifications | 185R14LT 6-ply tire, 185R14LT 8-ply tire |
| all | 5-speed transmission | Fuel types | gasoline |
| Emission standards | National VI | Engine Model | Liuzhou Wuling 113 horsepower |
| Boyfriend advantages | |||
| Advantages in appearance: |

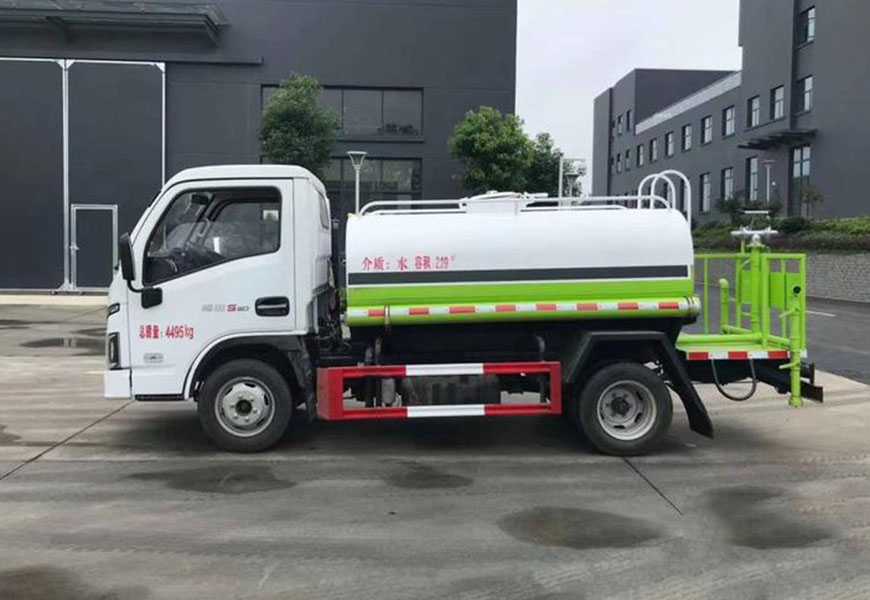

The Kaima K1 New National VI Sprinkler Truck is a sanitation vehicle built by the Kaima gasoline startup brand, which adopts the National VI emission standard. The truck has a tank volume of 3 cubic meters and is equipped with front spray, rear spray, side spray and rear platform garden cannon as standard. It is a common means of transportation for greening, residential communities and highway freight. |
||
| Exterior configuration: | Adopting the preliminary design of Kaima, the new cab of the Kaima K1 series has a wheelbase of 2600/2800mm. It is equipped with a Liuzhou Wuling 113 horsepower gasoline engine with a power of 83kw, meeting the National VI emission standard. It has a 5-speed transmission, 185R14 tires with vacuum, electronic power steering, hydraulic brakes, factory air conditioning, a 12V battery, and ABS. | ||
| Upper body configuration: |

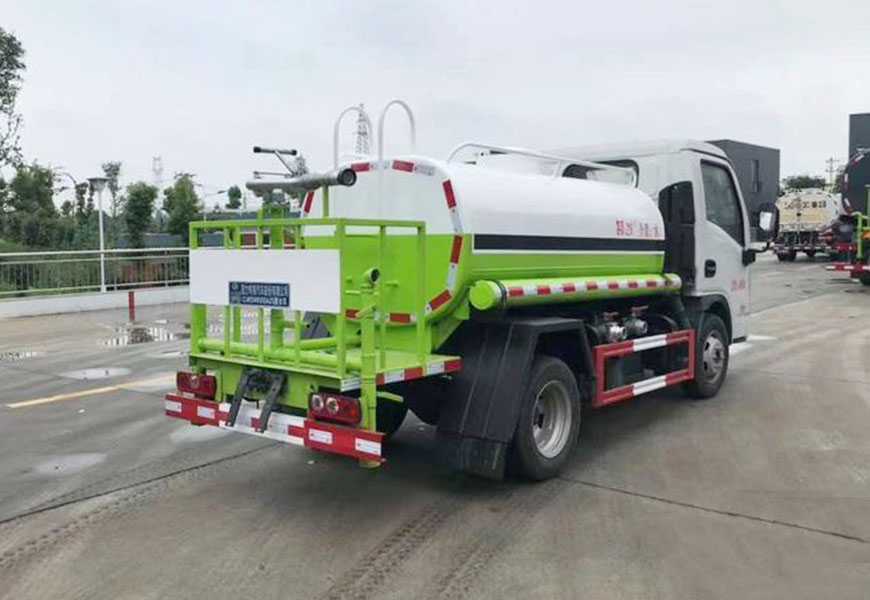

Tank volume: 3 cubic meters; tank body is made of 4mm thick Q235 carbon steel plate, formed in one piece; internal baffles have a wave-damping function to reduce the impact of the tank on the liquid when the vehicle is moving; equipped with a high-power special water pump, which is self-priming and self-draining; the whole vehicle has front spray, rear spray, side spray, and a greening water cannon on the rear platform. The water cannon can rotate in all directions and can be continuously adjusted to a straight jet, heavy rain, light rain, or drizzle; the front end cap has a water level gauge, the main pipeline of the rear platform has a 1-inch watering interface, a rear ladder, a fire hydrant connection, a self-flow valve, and a filter device. |
||
| Optional configuration: |
1. Optional pneumatic ball valve switch control in the cab; 2. Optional rear platform control console with CLW-30 fog cannon.
|
||
| Scope of application: | Suitable for washing various road surfaces, cleaning trees, green belts, and lawns, as well as for road and factory construction and high-rise building cleaning. It features functions such as water sprinkling, dust suppression, high and low-level spraying, pesticide spraying, and guardrail washing. | ||
| After-sales service: | With 1,300 after-sales service outlets nationwide, we provide comprehensive and worry-free after-sales service! | ||
| Quality Assurance: |
Big brand, high configuration, good after-sales service |
||
