| Vehicle technical parameters |
| Product Name |

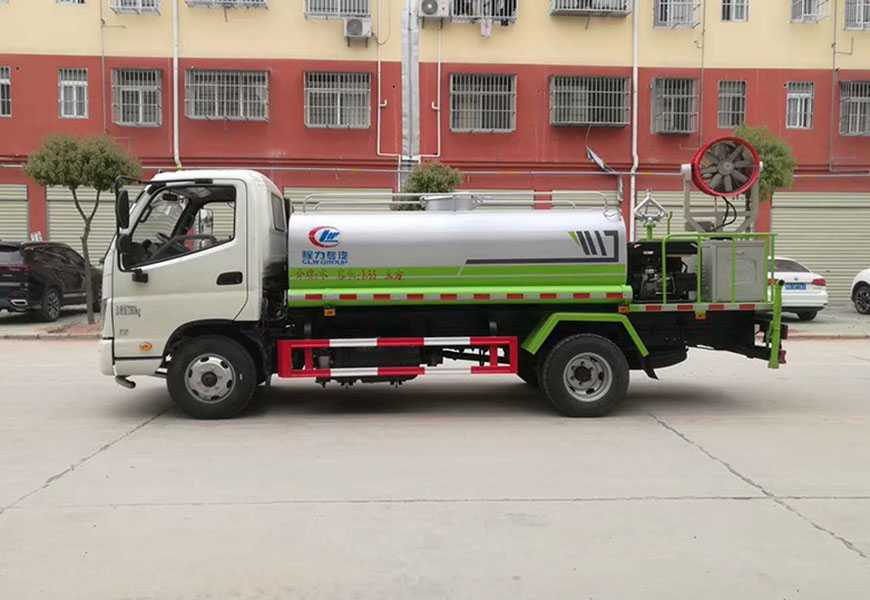

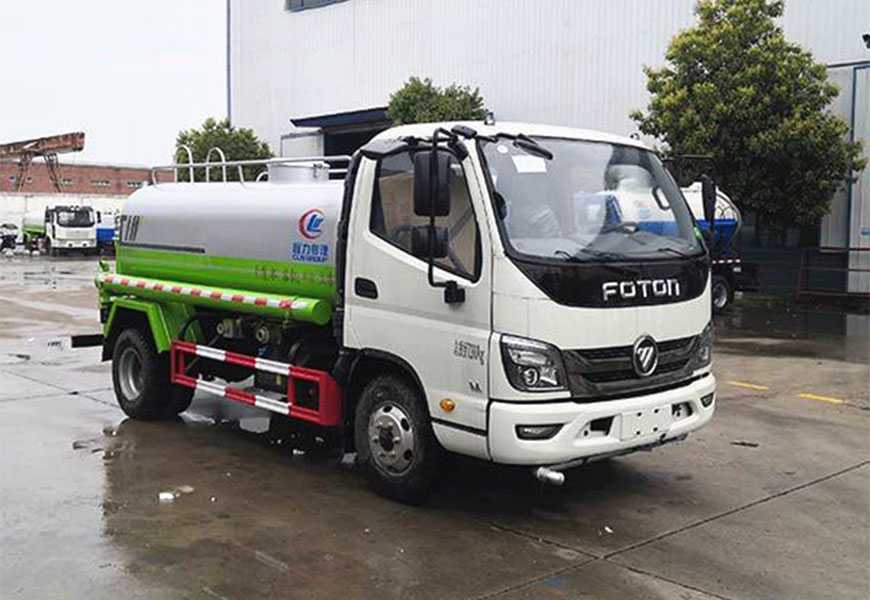

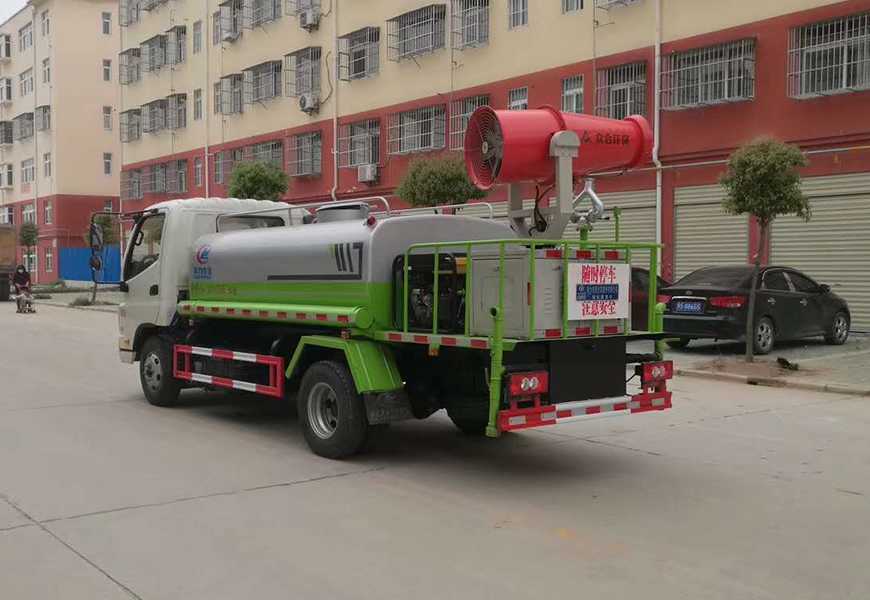

Foton Times Sprinkler Truck
|
Vehicle Model | CLW5070GPS6CD |
| Tank volume | 5 cubic meters | Sprinkler width | 20 meters |
| Water cannon lift | 35 meters | Vertical suction range | 8 meters |
| Total mass (kg) | 9225 | Rated load capacity (Kg) | 4900 |
| Curb weight (kg) | 4130 | External dimensions (mm) | 5980×2050×2450 |
| Molding technical parameters | |||
| Structure name | Fukuda Times | External model | BJ1073VDJDA-01 |
| Passenger capacity (persons) | 2 people | Number of tires | 6 |
| Wheelbase (mm) | 3360 mm | Tire specifications | 7.00R16 |
| all | 5-speed transmission | Fuel types | nickel |
| Emission standards | National VI | Engine Model | Quanchai 130 horsepower |
| Boyfriend advantages | |||
| Advantages in appearance: |
The Foton Times Navigator National VI Sprinkler Truck is a sanitation vehicle with a 3360mm wheelbase reinforced by Foton Times, which meets the National VI emission standard. The truck has a tank volume of 5 cubic meters and comes standard with front spray, rear spray, side spray, and a rear platform high-pressure water cannon. It is a commonly used facility for landscaping, residential areas, and highway construction. |
||
| Exterior configuration: | The Foton Times Navigator M3 features a wide-body, single-row, hydraulically tiltable luxury cab, a Quanchai 130hp Euro VI engine, 5-speed transmission, a 4-ton rear axle, 7.00R16 steel tires, power steering, electronic instrument panel, factory-installed air conditioning, fully enclosed remote control, cruise control, power windows and doors, remote key, and a multi-function steering wheel. The center console dimensions (mm) are 5995×2240×2380. The gross vehicle weight is 7360Kg, the rated load is 3720Kg, and the curb weight is 3445Kg. It also includes five new regulations: automatic brake adjustment arm, headlight adjustment, splash guards, warning triangle, and reflective vest. | ||
| Upper body configuration: |
The 5-ton water sprinkler truck, meeting China VI emission standards, features a 4mm thick tank made of Q235 carbon steel with 5mm thickened transverse end caps. The tank has a capacity of 5 cubic meters and is machine-welded in a single piece, utilizing advanced domestic technology. It includes front, rear, and side spraying functions; a fire hydrant interface; a post-work platform and a high-pressure water cannon for landscaping (rotatable in all directions, continuously adjustable to straight jet, heavy rain, light rain, and drizzle); a water level gauge; two equal-length water hoses; and other standard features. The product boasts mature and reliable quality, an advanced and reasonable design, and a high-pressure, long-lift, and long-life water pump capable of pumping in and out. |
||
| Optional configuration: |
1. Optional pneumatic ball valve switch control in the driver's cab; 2. Optional rear platform control panel with CLW-30 fog cannon.
|
||
| Scope of application: | Suitable for washing various road surfaces, cleaning trees, green belts, and lawns, as well as for road and factory construction and high-rise building cleaning. It features functions such as water sprinkling, dust suppression, high and low-level spraying, pesticide spraying, and guardrail washing. | ||
| After-sales service: | With 1,300 after-sales service outlets nationwide, we provide comprehensive and worry-free after-sales service! | ||
| Quality Assurance: |
Big brand, high configuration, good after-sales service |
||
