| Vehicle technical parameters |

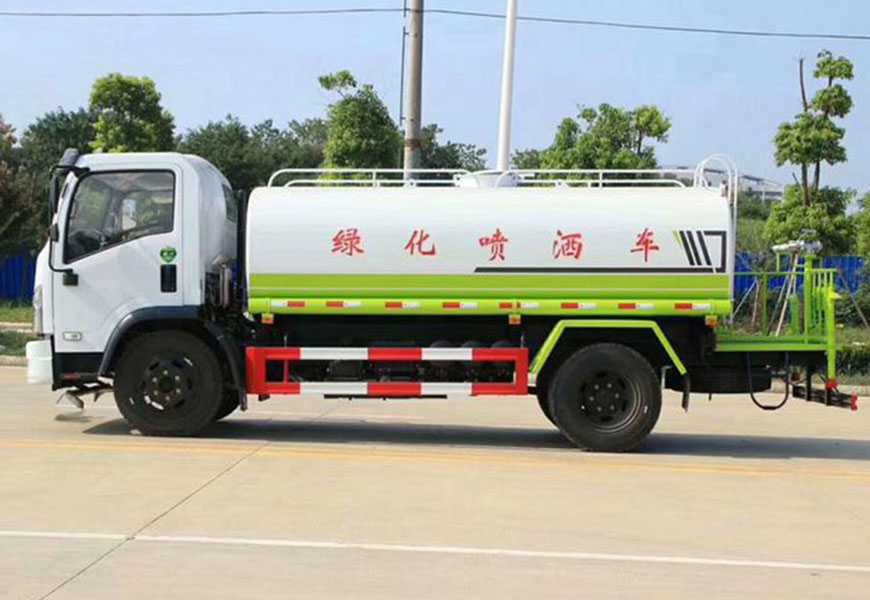

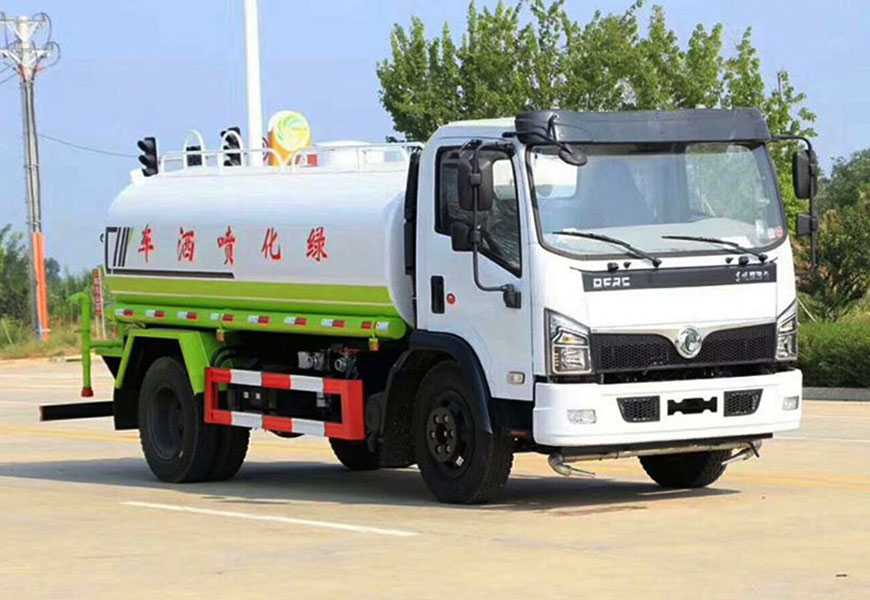

| Product Name | Dongfeng Furika Green Sprayer Truck | Product Model | CLW5120GPSE6 |
| Tank volume | 9.2 cubic meters | Sprinkler width | 14 meters |
| Water cannon lift | 30 meters | Vertical suction range | 7 meters |
| Total mass (kg) | 11995 | Rated load capacity (Kg) | 7080 |
| Curb weight (kg) | 4720 | External dimensions (mm) | 7230×2250×2700 |
| Molding technical parameters | |||
| Trademark Name | Dongfeng brand | External model | EQ1125SJ8CDC |
| Passenger capacity (persons) | 3 people | Number of tires | 6 |
| Wheelbase (mm) | 3800 mm | Tire specifications | Chapter 245 Vacuum Tire |
| all | 6-speed transmission | Fuel types | nickel |
| Emission standards | National VI | Engine Model | Chaoyang Diesel 163 horsepower |
| Boyfriend advantages | |||
| Vehicle advantages: |
The tanker truck has a large, practical, and towering underground structure, making it suitable for highways, large-scale industrial and mining projects, urban roads, and large-area greening operations. |
||
| Exterior configuration: |
The new Dongfeng Furika 2030 features a single-row cab, a Chaichai NV30-C6D engine (163 horsepower, optional Yunnei 150 horsepower engine), a Wanliyang 6-speed standard transmission, a 2.7T front axle, a 5.5T rear axle, 8.25R20 steel tires, colored frame, air brakes, air conditioning, power windows, central locking, and factory-installed ABS. |
||
| Upper body configuration: |
The tank tower is approximately 9.2 cubic meters in size and comes standard with front spray, rear spray, side spray, and rear platform cannon (adjustable mist, column, etc.). It is equipped with Yifeng or Jinlong water pumps, with self-flow valves, fire extinguisher connections, and two suction pipes. |
||
| Optional configuration: | It can be equipped with advanced facilities such as spraying discs, chemical pumps, internal corrosion and rust prevention, multi-directional water inlet and outlet connectors, solenoid valves, and pneumatic valves to meet the needs of different users. | ||
| Scope of application: | Landscaping: Nursery watering, plant irrigation, and landscaping spraying. Construction sites: Dust suppression spraying, dust control, and water transportation for irrigation. | ||
| After-sales service: | With 1,300 after-sales service outlets nationwide, we provide comprehensive and worry-free after-sales service! | ||
| Quality Assurance: |
Big brand, high configuration, and good service! |
||
